Android 高仿 IOS7 IPhone 解锁 Slide To Unlock 附源码

0. 源码下载



 http://www.waitingfy.com/?attachment_id=808

1. IPhone 解锁 效果图:



在最新的IOS7中,苹果更改了解锁方式,整个屏幕向右滑动都可以解锁,不再局限在一个小的矩形中。这种文字加亮移动的效果还是继承了下来。之前滑动最左边的滑块,中间文字会有渐变效果,这次文字会跟随着左边的小图标随着用户向左滑动。

滑动触发事件在苹果大致用在了3个地方,1.滑动解锁,2.滑动关机,3.手机处于锁住状态来电,滑动接听。我们来看下Android下的高仿实现。



2.需要实现的东西



1. 文字加亮移动效果(这个可能是最吸引眼球的地方)

2. 滑动一段距离,不够触发事件距离的时候就会弹回原来的地方

3. 超过解锁距离,触发事件(解锁 || 关机 || 接听电话)

4.用户已较大加速度滑动,虽然没有超过解锁距离,但是也会解锁,并且会有向右滑动惯性

5.用户按下去,文字变白,动画停止(滑动关机里的效果)



3.文字加亮移动效果



3.1实现方法1:两次逻辑,底下文字,上面图片快速滑动

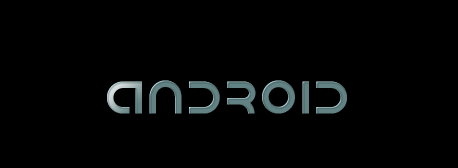

第一感觉的做法是:底下是文字,文字上面有一张图片快速滑动。而且感觉这个动画很熟悉,好像在哪里看过?没错,在原生的Android系统中,开机动画就是这样的效果!

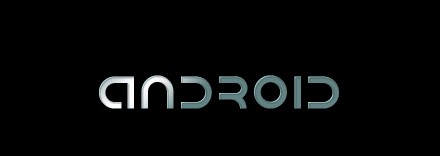

在Android 源码的 \frameworks\base\core\res\assets\images 目录下发现了两张图片,验证了我的想法:



但是这次我没有用这样的方法,:( 。有兴趣的朋友可以试着做下,感觉不难。



3.2 实现方法2: 使用Android shader中的LinearGradient



LinearGradient是个什么东西呢?可以给定几个颜色,实现下面的效果。如果我们只有两种颜色,灰色和白色,边上两端都是灰色,中间白色,然后使用Android中的ValueAnimator改变位置也可以实现我们要的效果。这样有两个好处:1.逻辑比较单一,只有文字。2.颜色比图片容易更改。





3.2.1 LinearGradient的使用



大家可以参考官方API: http://developer.android.com/reference/android/graphics/LinearGradient.html
public LinearGradient (float x0, float y0, float x1, float y1, int[] colors, float[] positions, Shader.TileMode tile)


Create a shader that draws a linear gradient along a line.



Parameters



x0 The x-coordinate for the start of the gradient line
y0 The y-coordinate for the start of the gradient line
x1 The x-coordinate for the end of the gradient line
y1 The y-coordinate for the end of the gradient line
colors The colors to be distributed along the gradient line
positions May be null. The relative positions [0..1] of each corresponding color in the colors array. If this is null, the the colors are distributed evenly along the gradient line.
tile The Shader tiling mode



跟画线段一样,一个起点,一个终点,中间是颜色。主要讲下最后一个tile的东西,像3.2中的图片那样的效果需要定义为Shader.TileMode.REPEAT,重复的意思。我们这里的需求是不一样的,我们两端需要补充,所以使用Shader.TileMode.CLAMP。

demo:



LinearGradient linearGradient = new LinearGradient(0, 0, 100, 100, new int[] {
				Color.RED, Color.GREEN, Color.BLUE, Color.WHITE }, null,
				Shader.TileMode.REPEAT);
Paint paint = new Paint();
paint.setShader(linearGradient);

3.2.2 Android 中的动画 ValueAnimator



顾名思义可以在一定时间内更改Value。下面是一个小小Demo(在1秒内,值从0到1不断变化):

ValueAnimator animation = ValueAnimator.ofFloat(0f, 1f);
animation.setDuration(1000);
animation.addUpdateListener(new AnimatorUpdateListener() {
    @Override
    public void onAnimationUpdate(ValueAnimator animation) {
        Log.i("update", ((Float) animation.getAnimatedValue()).toString());
    }
});
animation.setRepeatCount(Animation.INFINITE);//repeat animation
animation.start();

注意我们还加上了重复次数,定义为无限,这样就是我们想要的效果。



4.弹回去的动画,Android ObjectAnimator



可以参考这篇文章《Android 高仿三星日历》

这里使用了ObjectAnimator中的下面的方法
public static ObjectAnimatorofFloat(Object target, String propertyName, float… values)

target 要进行动画的控件
propertyName 要更改的属性名称,一般控件里SetXX后面的值,比如一个控件可以SetRotation,那么Rotation就是一个属性名称
values 属性更改的两个值,从开始到结束

Demo:

// left move animation
        ObjectAnimator animLeftMove = ObjectAnimator.ofFloat(mLinearLayout,
                "x", mLinearLayout.getX(), -54).setDuration(
                1000);
        animLeftMove.start();

5.得到用户滑动的速率 VelocityTracker



具体可以参考Android API: http://developer.android.com/reference/android/view/VelocityTracker.html


主要 要知道Android中有这么个东西,用途很广的,比如PageView两页之间快速滑动,ListView快速等。它可以得到x轴和y轴上的加速度,我们这里只需要用到x轴上的。

demo:

@Override
	public boolean onTouchEvent(MotionEvent event) {

        if (mVelocityTracker == null) {
			mVelocityTracker = VelocityTracker.obtain();
		}

		mVelocityTracker.addMovement(event);

       velocityTracker.computeCurrentVelocity(1000);//should compute first

		int velocityX = (int) velocityTracker.getXVelocity();//get volocity in x

		if(velocityX > mMinVelocityXToUnlock){
			//unlock Success;
			return true;
		}
        return true;
	}

6.Android中的自定义控件



核心用的技术讲完了,扯下Android中的自定义控件。我们写的这个如果要复用的话,最好的方式就是封装成一个控件。把文字,解锁难度等成为控件属性,这样就方便了。



6.1 第一步 attrs.xml中定义需要用的属性



<?xml version="1.0" encoding="utf-8"?>
<resources>
    <!-- =============================== -->
    <!-- GradientView class attributes -->
    <!-- =============================== -->
    <declare-styleable name="GradientView">
        <attr name="StringToShow" format="reference"/>
        <attr name="TextSize" format="dimension"/>
        <attr name="TextColor" format="integer"/>
        <attr name="SlideColor" format="integer"/>
    </declare-styleable>
</resources>

比如这里我们定义了4个属性。分别是要显示的文字,文字大小,文字颜色,滑动颜色。

6.2 第二步,新建一个类继承你想要扩展的类





public class GradientView extends View {
	private int 	mTextSize;
	int 			mDefaultColor;
	int             mSlideColor;
	private int mWidth,mHeight;
	private String mStringToShow;
	private Paint mTextPaint;
	private float mTextHeight;

	public GradientView(Context context) {
		super(context);
	}

	public GradientView(Context context, AttributeSet attrs) {
		super(context, attrs);
		TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.GradientView);
		mStringToShow = a.getString(R.styleable.GradientView_StringToShow) ;
		mTextSize = (int)a.getDimension(R.styleable.GradientView_TextSize, 40);
		mDefaultColor = a.getColor(R.styleable.GradientView_TextColor, Color.GRAY);
		mSlideColor = a.getColor(R.styleable.GradientView_SlideColor, Color.WHITE);
		a.recycle();

		mTextPaint = new Paint();
		mTextPaint.setAntiAlias(true);
		mTextPaint.setColor(mSlideColor);
		mTextPaint.setTextSize(mTextSize);
		mTextPaint.setTextAlign(Paint.Align.CENTER);

		mTextHeight = mTextPaint.ascent();

	}

	@Override
	protected void onDraw(Canvas canvas) {
		//draw something
	}

	@Override
	protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
		super.onMeasure(widthMeasureSpec, heightMeasureSpec);
		mWidth = MeasureSpec.getSize(widthMeasureSpec);
		mHeight = MeasureSpec.getSize(heightMeasureSpec);
	}

}

6.3 布局文件中使用我们自定义的控件



<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:prvandroid="http://schemas.android.com/apk/res/com.waitingfy.iosunlock"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#FFFFFF"
    tools:context=".MainActivity" >

    <com.waitingfy.iosunlock.GradientView
         android:id="@+id/gradientView"
         android:layout_width="match_parent"
         android:layout_height="match_parent"
         android:layout_centerVertical="true"
         android:layout_marginLeft="@dimen/gradient_view_margin_left"
         prvandroid:StringToShow="@string/slide_to_unlock_string"
         prvandroid:TextSize="@dimen/gradient_text_size"
         prvandroid:TextColor="@color/gradient_text_color"
         prvandroid:SlideColor="@color/gradient_slide_text_color"
         />
</RelativeLayout>

注意这个命名空间 xmlns:prvandroid=”http://schemas.android.com/apk/res/com.waitingfy.iosunlock”

6. 源码下载



IOSUnlock.rar



7.附Android 原生开机动画





http://www.waitingfy.com/?p=802
